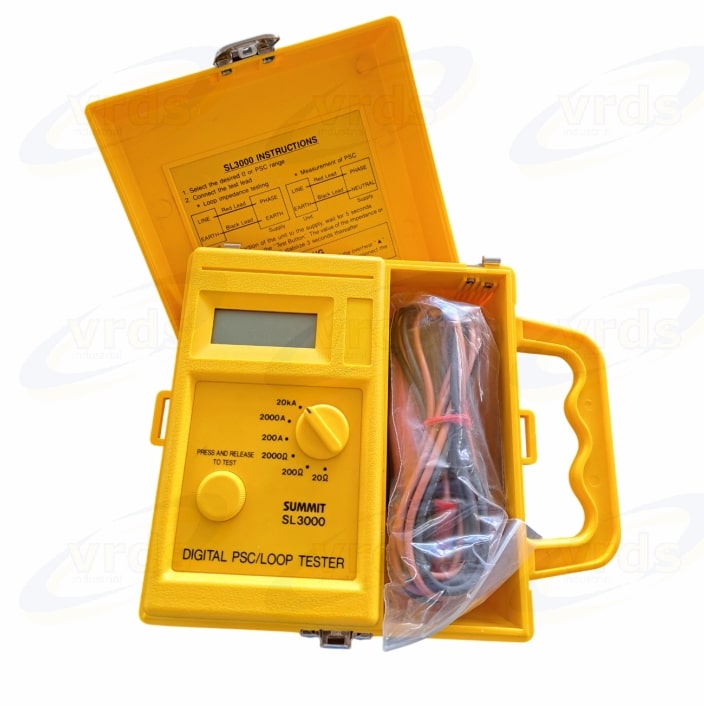

Digital PSC/LOOP Tester
Designed to comply with the latest IEE wiring regulations. Prospective short-circuit current can be measured directly by connectig leads to phase and neutral, pressing the test button and releasing it.
- Meets IEC standards.
- Accurately measures low impedance(down to 0.01 ohm)
- Automatic data hold function
- Overheat cut-out function
- No batteries required
SPECIFICATION
Rated Voltage:200V – 260V a.c. 50Hz
Operating Temperature: -10° C to +40° C
Storage Temperature: -20°C to +60°C
Operating Humidity:85% maximum
Storage Humidity:90% maximum
Overcurrent Protection: 30 A 250 V fuse, fitted
internally
Dimensions(all in mm): 170(L)x205(W)x90(D)
Weight:900g.excluding leads
Accessories: Test lead set Instruction manual
